Signage

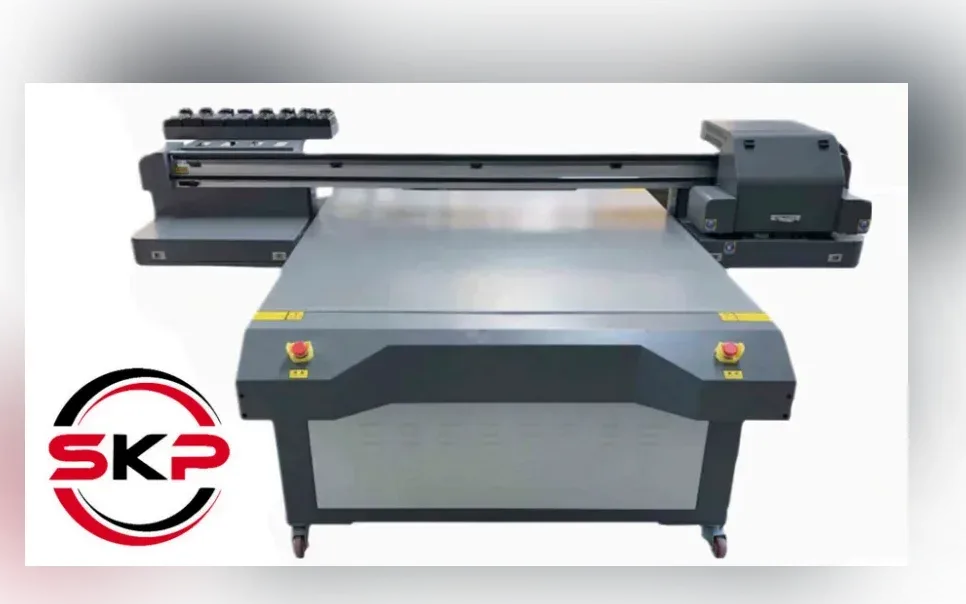

1612 UV Printer

1600x1200mm bed, 3-4 print heads, speed mode up to 20 sq.m/hr

A large-format flatbed for sign shops running real production volume — 1.5 to 3 times faster than peer machines, with automatic collision detection and built-in antifreeze heating.

Prints on

WoodGlassCrystalPVCABSAcrylicMetalPlasticStoneLeatherCloth and other textiles

Full specifications

Size
3050*1840*1430mm
Model
1612UV printer
Power
AC220/110 50Hz~60Hz
Weight
690kg
Protect
Automatic detection and collision avoidance
Ink type
UV ink
Maintain
Automatic cleaning, manual cleaning
Software
RIP
Interface
High speed USB
Ink supply
Automatic negative pressure ink supply
Print case
Wood, glass, crystal, PVC, ABS, acrylic, metal, plastic, stone and leather; color photo printing shall be carried out on the surface of cloth and other textiles
Curing mode
Led UV is ready to dry
File format
TIF, BMP, PDF, JPG, etc
Print color
CMYK + W + varnish
Print range
1600*1200 mm
Servo motor
High precision servo motor
Color output
White light oil comes out at the same time
Print height
0~150mm
Print quality
resolution 720/1440/2880/5760/11520 pictures can be printed
Print direction
Unidirectional / bidirectional
Special effects
Relief / gloss
Instant printing
Automatic change code / name / date printing
Lifting function
Printing head lifting
Operating system
XP、Win7/8/10
Work environment
Temperature 15 ~ 35, humidity 20 ~ 30%
Antifreeze system
Built in heating system
Height adjustment
Automatic height measurement
Printing platform
Alloy suction platform
Transmission mode
X、Y-axis guide rail + motor
Printing technology
Variable ink drop Technology
Number of print heads
(3~4)
Print head configuration
1600, Epson i3200, Ricoh G5, Ricoh g5i (optional)
Speed mode (1.5 ~ 3 times faster than peers)
3pass 10~20m2/4pass 8~15m2, 6pass 5~10m2

Ask about this machine

Quote-based pricing — tell us your use case and we'll get back to you the same business day.
