Signage
2513 UV Printer
Industrial-grade 2.5m flatbed, 2.5PL precision, 1.5-3x faster than peer machines
Precision core micro thin-film piezoelectric printing chip achieves high-definition image levels — color blocks are cleaner and smoother, with ink droplets sprayed close together for accurate positioning and smoother color transitions.
Prints on
WoodGlassCrystalPVCABSAcrylicMetalPlasticStoneLeatherCloth and other textiles
Full specifications
- Size
- 4030*1920*1305mm
- Model
- 2513UV printer
- Power
- AC220/110 50Hz~60Hz
- Weight
- 550kg
- Protect
- Automatic detection and collision avoidance
- Ink type
- UV ink
- Maintain
- Automatic cleaning, manual cleaning
- Software
- RIP
- Interface
- High speed USB
- Ink supply
- Automatic negative pressure ink supply
- Print case

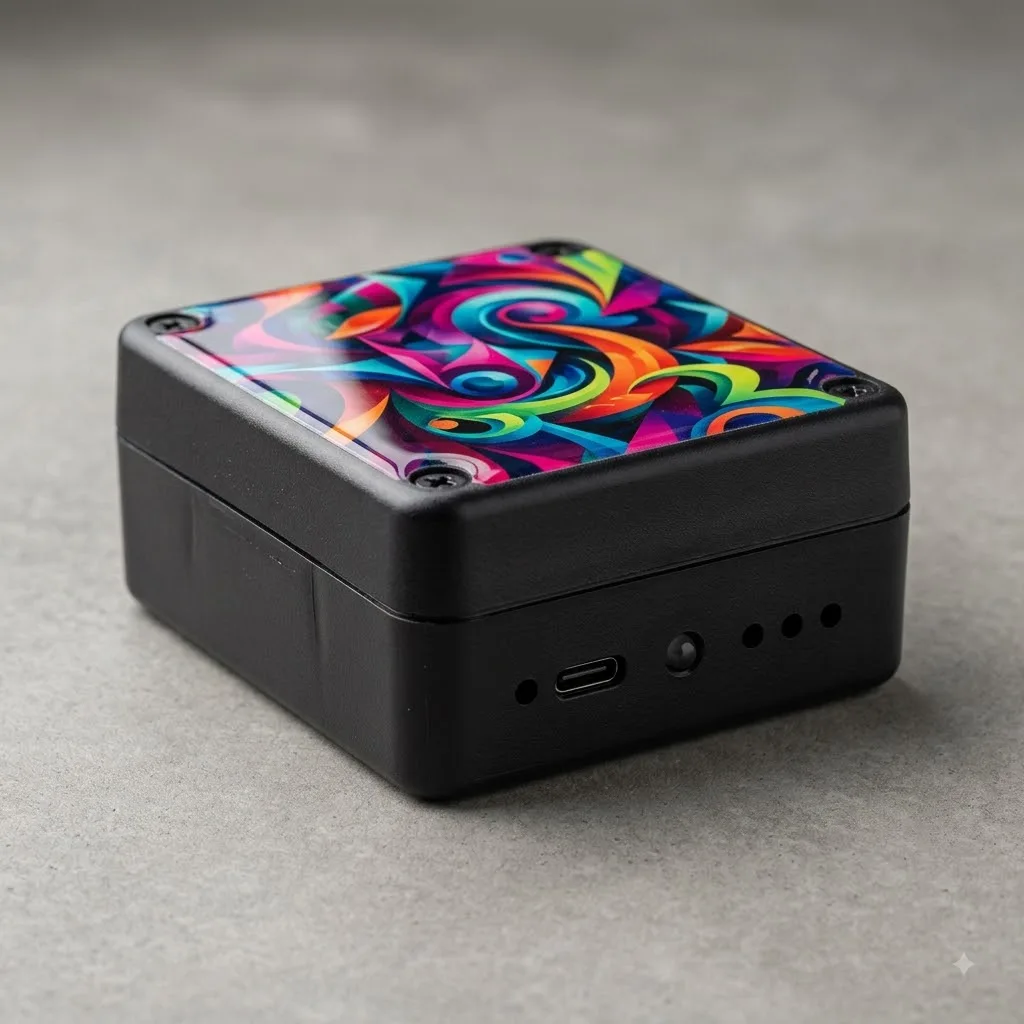

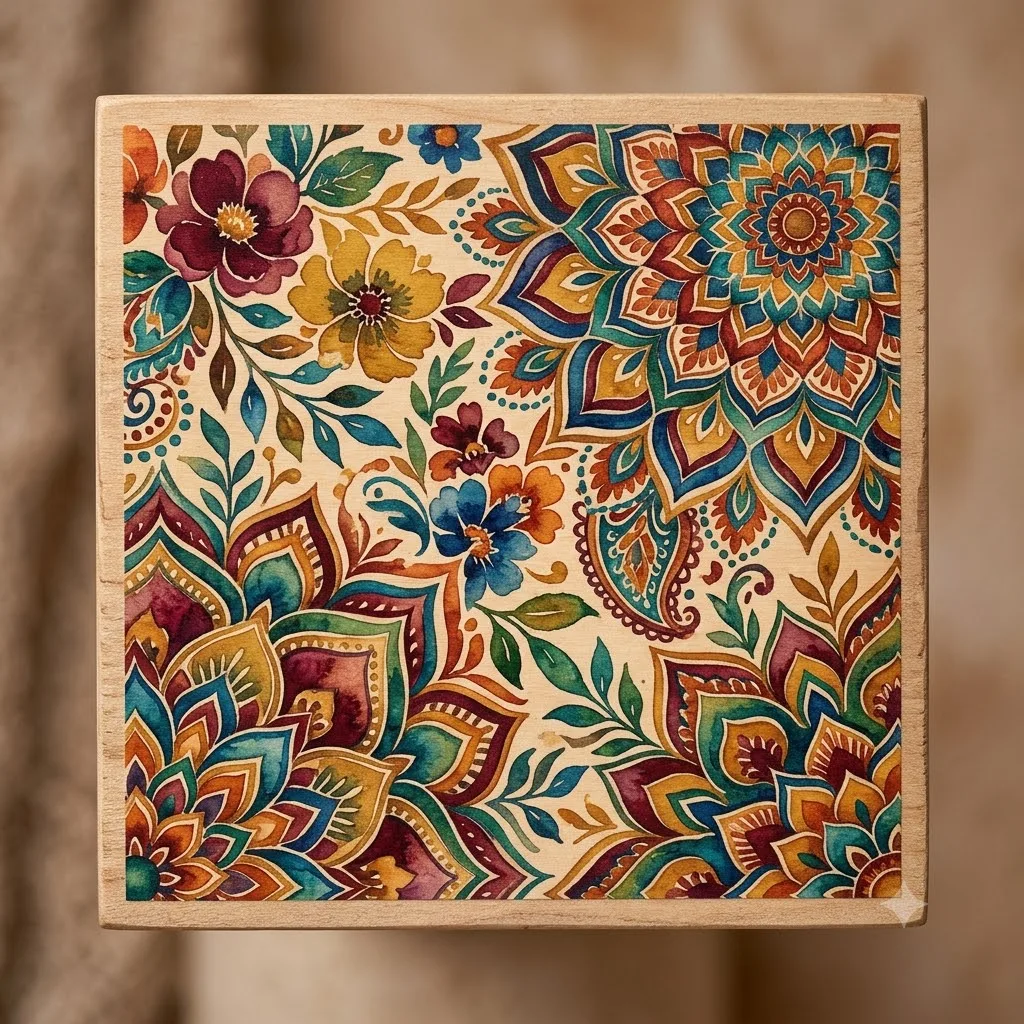

- Wood, glass, crystal, PVC, ABS, acrylic, metal, plastic, stone and leather; color photo printing shall be carried out on the surface of cloth and other textiles
- Curing mode
- Led UV is ready to dry
- File format
- TIF, BMP, PDF, JPG, etc
- Print color
- CMYK + W + varnish
- Print range
- 2500*1300mm
- Servo motor
- High precision servo motor
- Color output
- White light oil comes out at the same time
- Print height
- 0~150mm
- Anti blocking
- Automatic mixing for flash injection and anti blocking
- Print quality
- resolution 720/1440/2880/5760/11520 pictures can be printed
- Print direction
- Unidirectional / bidirectional
- Special effects
- Relief / gloss
- Instant printing
- Automatic change code / name / date printing
- Lifting function
- Printing head lifting
- Operating system
- XP、Win7/8/10
- Work environment
- Temperature 15 ~ 35, humidity 20 ~ 30%
- Antifreeze system
- Built in heating system
- Height adjustment
- Automatic height measurement
- Printing platform
- Alloy suction platform
- Transmission mode
- X、Y-axis guide rail + motor
- Printing technology
- Variable ink drop Technology
- Number of print heads
- (3~4)
- Print head configuration
- Epson 1600, Epson i3200, Ricoh G5, Ricoh g5i (optional)
- Speed mode (1.5 ~ 3 times faster than peers)
- 3pass 10~20m2/4pass 8~15m2, 6pass 5~10m2
Ask about this machine
Quote-based pricing — tell us your use case and we'll get back to you the same business day.
